對于需要在很短距離內快速移動的應用,音圈電機可以是很好的解決方案。音圈電動機本質上是單相線性電動機。它由一個中心帶磁鐵的線圈組成。向線圈施加電流會移動磁鐵。

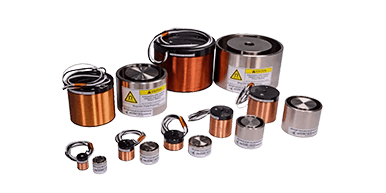

ABM音圈電機:特點
A.無齒槽效應,運動順滑
B.動子質量輕,響應速度快
C.直驅設計,可靠性高
D.采用高性能永磁體,推力高
電機規格 | 直徑 | 有效行程 | 持續推力(N)(100℃) | 峰值推力(N) | 線圈重 | 總質量 |
AVM12-6.4 | 12.7 | 6.4 | 0.91 | 3.53 | 5.0 | 12 |
AVM19-5 | 19 | 5 | 1.75 | 7.88 | 9.0 | 32.8 |
AVM-20-10 | 20 | 10 | 1.56 | 7.60 | 11.0 | 56.1 |
AVM-24-5 | 24 | 5 | 2.10 | 11.40 | 12.0 | 41.7 |
AVM24-10 | 24 | 10 | 2.65 | 14.82 | 16.5 | 61.5 |
AVM30-15 | 30 | 15 | 4.63 | 29.40 | 36.0 | 131.6 |
ANM40-20 | 40 | 20 | 9.93 | 58.05 | 67.0 | 293.2 |
AVM60-25 | 60 | 25 | 26.35 | 119.00 | 215.0 | 907.9 |
AVM90-30 | 90 | 30 | 89.10 | 315.00 | 820.0 | 2570.0 |
電機規格 | 直徑 | 有效行程 | 持續推力(N)(100℃) | 峰值推力(N) | 線圈重 | 總質量 |
AVM35-HF-7 | 35 | 7 | 14.40 | 72 | 53.0 | 199.8 |
AVM40-HF-6.5 | 40 | 6.5 | 16.56 | 93.15 | 68 | 286.7 |
AVM50-HF-10 | 50 | 10 | 33.60 | 140.00 | 148.0 | 701.0 |
AVM60-HF-10 | 60 | 10 | 51.20 | 224.00 | 236.5 | 1233.5 |
AVM90-HF-10 | 90 | 10 | 152.67 | 610.68 | 960.0 | 3360.0 |
AVM100-HF-10 | 100 | 10 | 192.50 | 770.00 | 1117.0 | 4417.0 |
AVM130-HF-25 | 130 | 25 | 360.36 | 764.40 | 1550.0 | 10850.0 |
AVM250-HF-20 | 260 | 20 | 1111.44 | 4715.20 | 5900.0 | 33100.0 |
電機規格 | 直徑 | 有效行程 | 持續推力(N)(100℃) | 峰值推力(N) | 線圈重 | 總質量 |
AVM14-HF-4-C19 | 14.2 | 4 | 2.44 | 7.33 | 7.0 | 20.7 |
AVM14-10-C56 | 14.2 | 10 | 0.98 | 2.95 | 3.0 | 16.6 |
AVM-20-HF-6-C28 | 20 | 6 | 5.69 | 17.06 | 13.5 | 61.0 |
AVM24-HF-5-C13 | 24 | 5 | 5.88 | 31.92 | 21.5 | 103.5 |
AVM30-7-C60 | 30 | 7 | 5.64 | 24.80 | 15.3 | 101.5 |
AVM35-HF-15-C22 | 35 | 15 | 19.76 | 98.80 | 80.7 | 341.7 |
AVM35-HF-8-C35 | 35 | 8 | 27.43 | 137.16 | 85.2 | 456.6 |
AVM35-HF-10-C31 | 52 | 10 | 16.72 | 83.60 | 78.0 | 363.7 |
AVM40-20-C18 | 40 | 20 | 8.11 | 47.39 | 65.0 | 270.0 |
AVM40-HF-6.4-C11-A | 40 | 6.4 | 18.18 | 99.40 | 49.0 | 244.0 |
AVM50-HF-10-C15-A | 50 | 10 | 25.20 | 105.00 | 142.0 | 624.0 |
AVM50-HF-10-C34-A | 50 | 10 | 37.57 | 156.55 | 144.0 | 772.0 |
AVM75-HF-25-C12 | 75 | 25 | 124.69 | 572.90 | 710.0 | 2650.0 |
AVM75-38-C39 | 75 | 38 | 45.26 | 192.02 | 534.0 | 1811.0 |
AVM80-12-C8 | 80 | 12 | 33.71 | 192.60 | 124.0 | 1386.4 |
AVM90-30-C77 | 90 | 30 | 57.30 | 202.60 | 751.2 | 1886.3 |
AVM90-HF-5-C40-A | 90 | 5 | 62.49 | 220.92 | 427.2 | 1941.8 |
AVM130-HF-10-C29-A | 130 | 10 | 162.10 | 487.20 | 1080.0 | 6380.0 |
AVM150-HF-20-C53 | 150 | 20 | 585.77 | 1757.30 | 1500.0 | 14200.0 |
